A wide-stance trunnion and concave teeth on the trunnion gears promote smooth blade raising/tilting. The Poly-V drive belt system results in quieter, more efficient power transfer with virtually no vibration and less heat build-up. A re-designed push button arbor lock is accessible from above the table top and eliminates the need for dual arbor wrenches. Sloped cabinet floor, dust shroud around the blade, and built-in port for dust extraction.
Features:
• Quick release riving knife lever for hassle free riving knife changes
• Matching beveled edge between table and extension wings
• Re-designed AccuFence system for precision cuts
• Dust collection greatly improved from previous models
• Poly-V drive belt system delivers efficient, quiet operation
• Wide stance heavy-duty trunnion for stability and smooth blade positioning
• Adjustable angle indicators (patent pending) on the blade bevel scale for repeatable bevel cuts
• Heavy-duty micro adjustable miter gauge with aluminum extruded fence for good workpiece guidance and fine angle adjustments
Specifications:
CSA Certified
Motor: 7.5HP, 3PH, 230/460V, 18.4/9.2A
L x W x H (In.): 48 x 38 x 43
Net Weight (lbs): 738 lbs.
Gross Weight (lbs): 831 lbs.

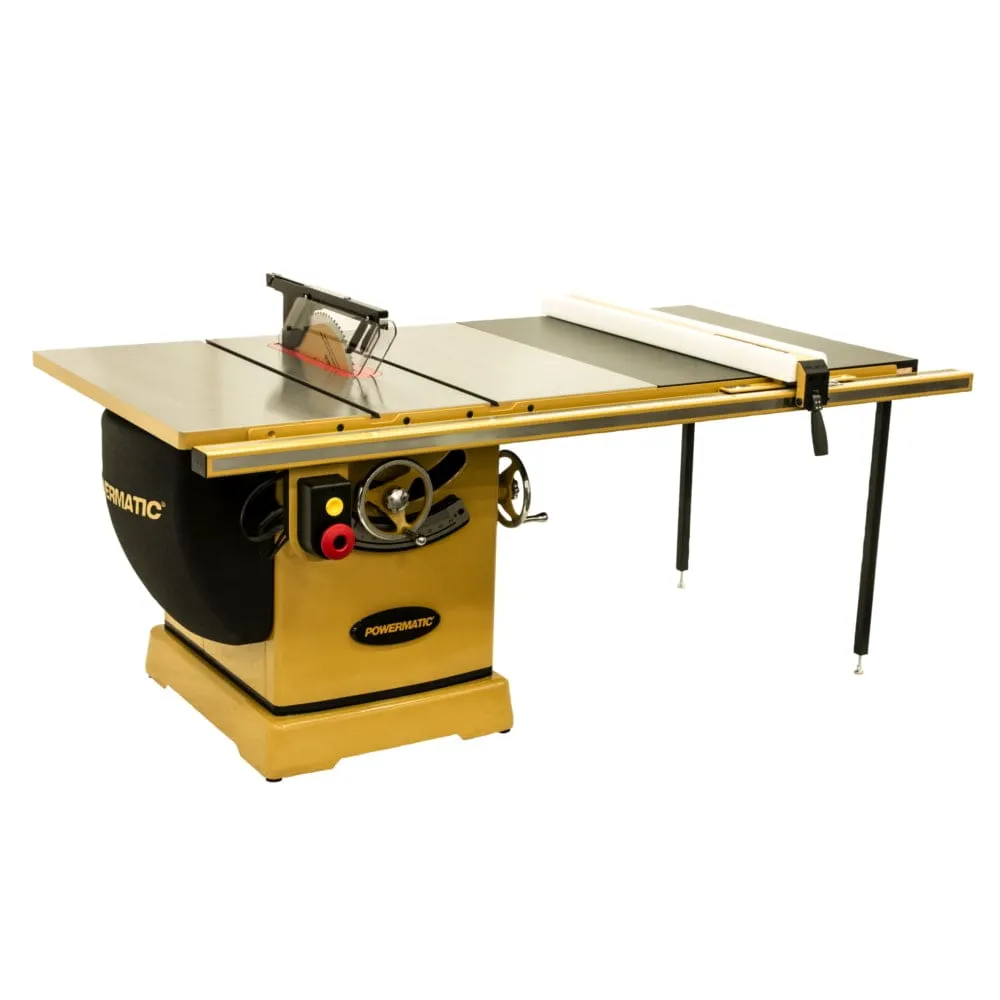

Style: Cabinet Saw
Prewired Voltage (V.): 230
Table Height from Floor (In.): 35-1/4
Maximum Diameter of Dado (In.): 8
Arbor Speed (RPM): 4500
Maximum Rip Left of Blade (In.) 14
Table Size (In.): 26 x 38
Maximum Width of Dado (In.): 13/16
Blade Diameter (In.): 14
Table Type: Cast Iron
Maximum Rip Right of Blade (In.): 50
Dust Port Outside Diameter (In.): 4
Table T-Slot (In.): 3/4 x 3/8
Arbor Diameter (In.): 1
Recommended Circuit Size (Amps.): 30
Dust Collection Minimum CFM Required (CFM): 600
Table Size with Extensions (In.): 48 x 38
Maximum Depth of Cut at 90 Degrees (In.): 5-1/8
Maximum Depth of Cut at 45 Degrees (In.): 3-1/2
Table in Front of Saw Blade at Maximum Depth of Cut (In.): 15-1/2
