Add a 4.3” TFT LCD Display with capacitive touch to your ! The Element 14 LCD Display Cape offers a high luminance, cap-touch panel display function.

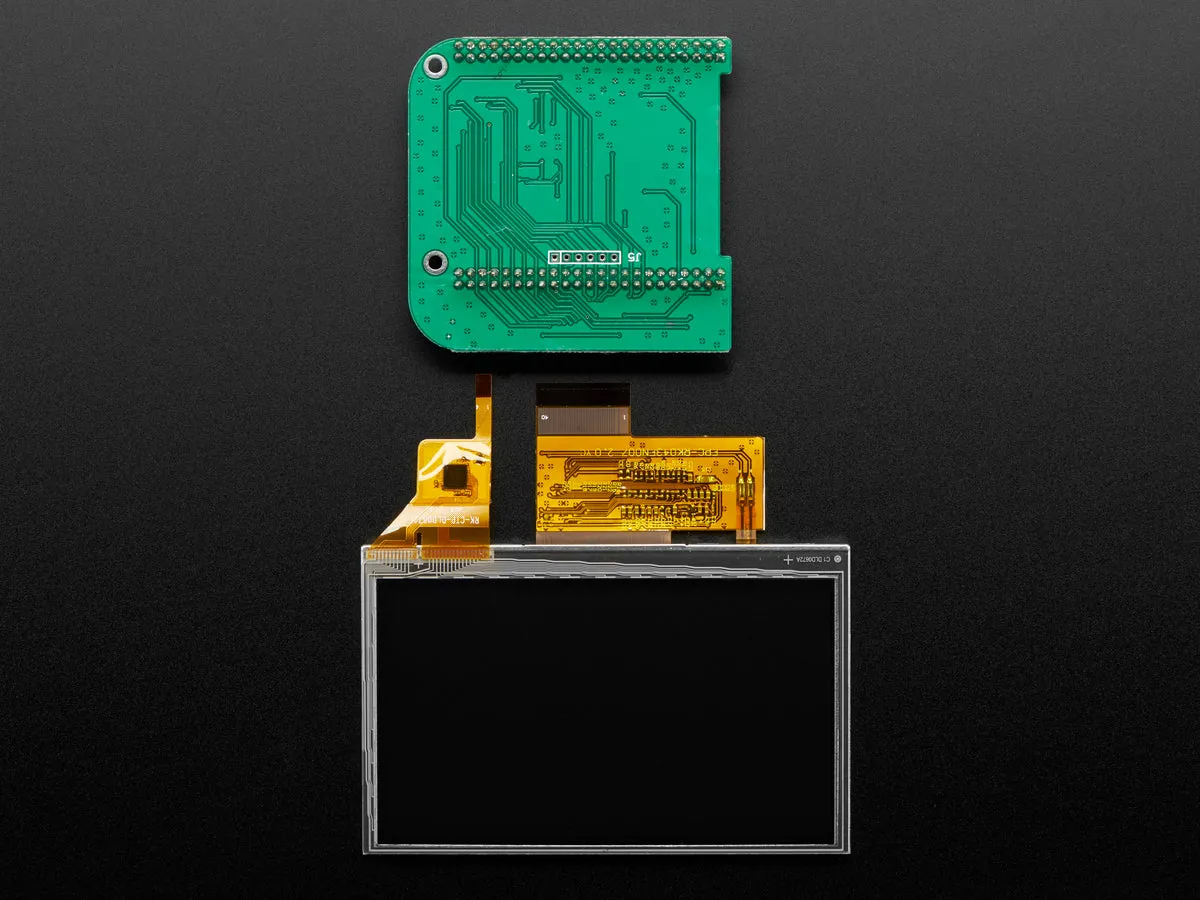

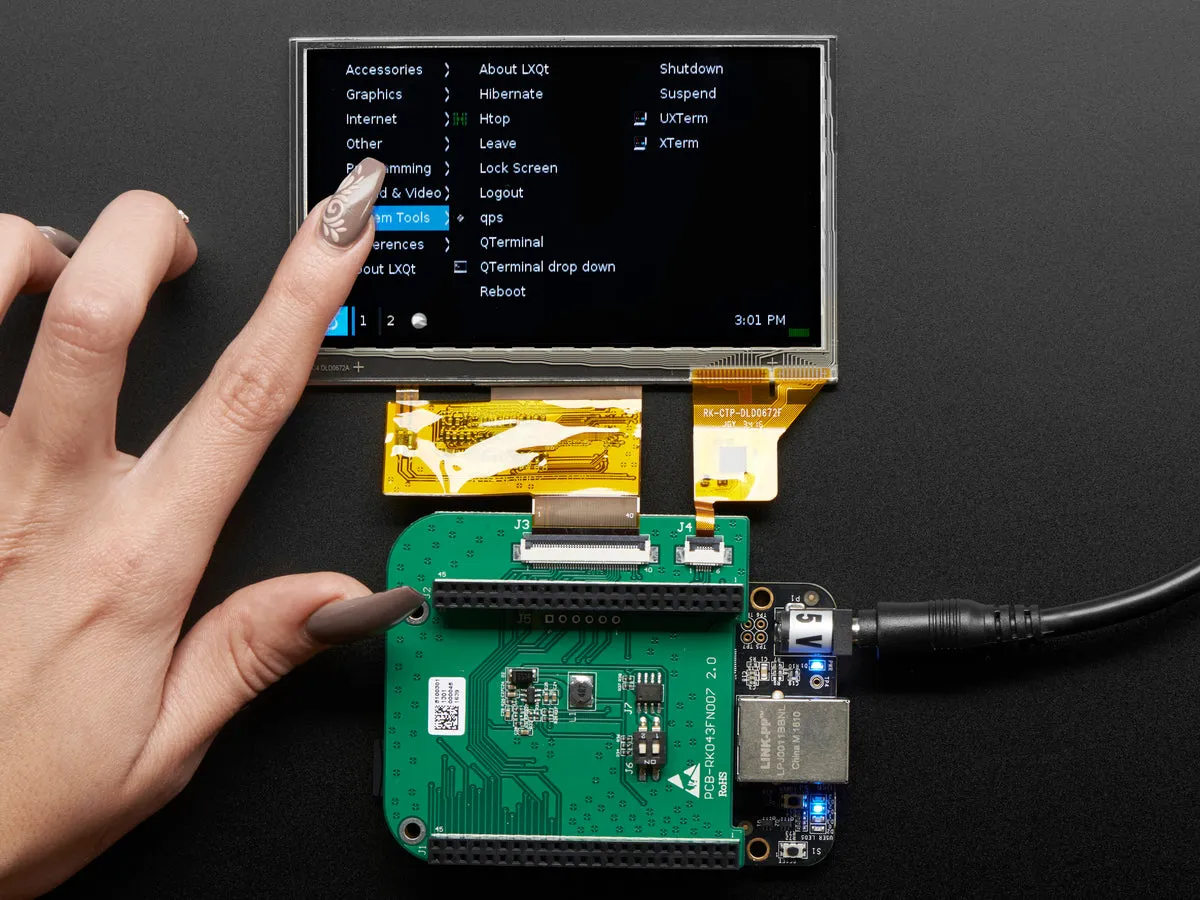

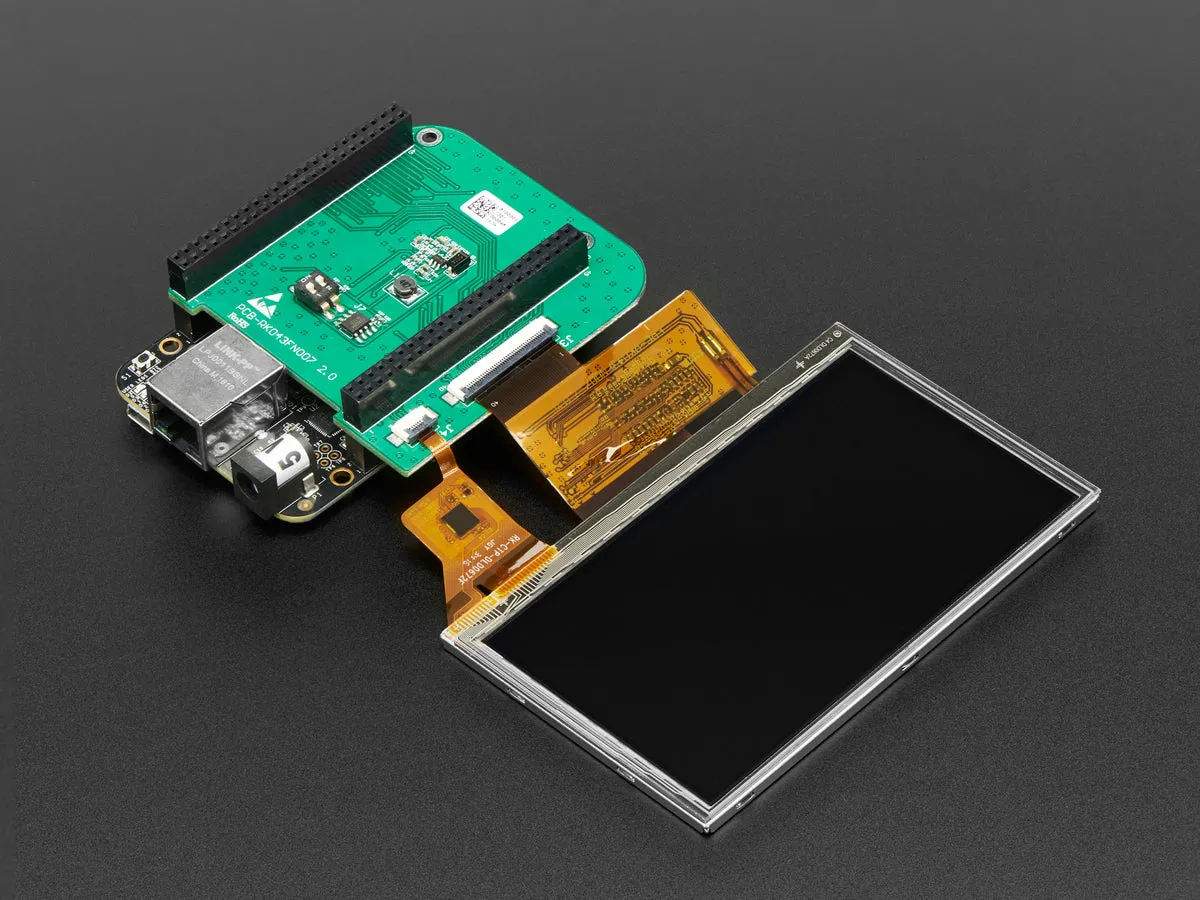

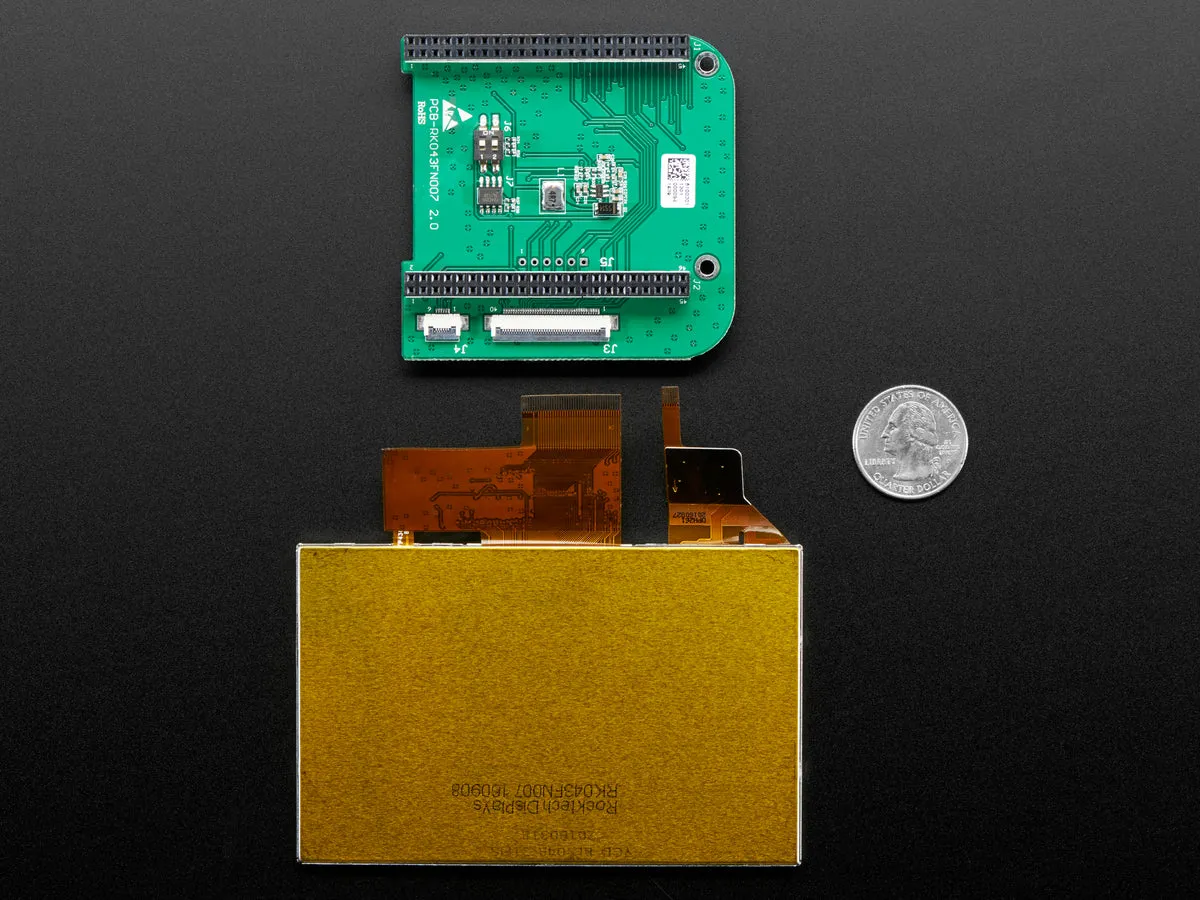

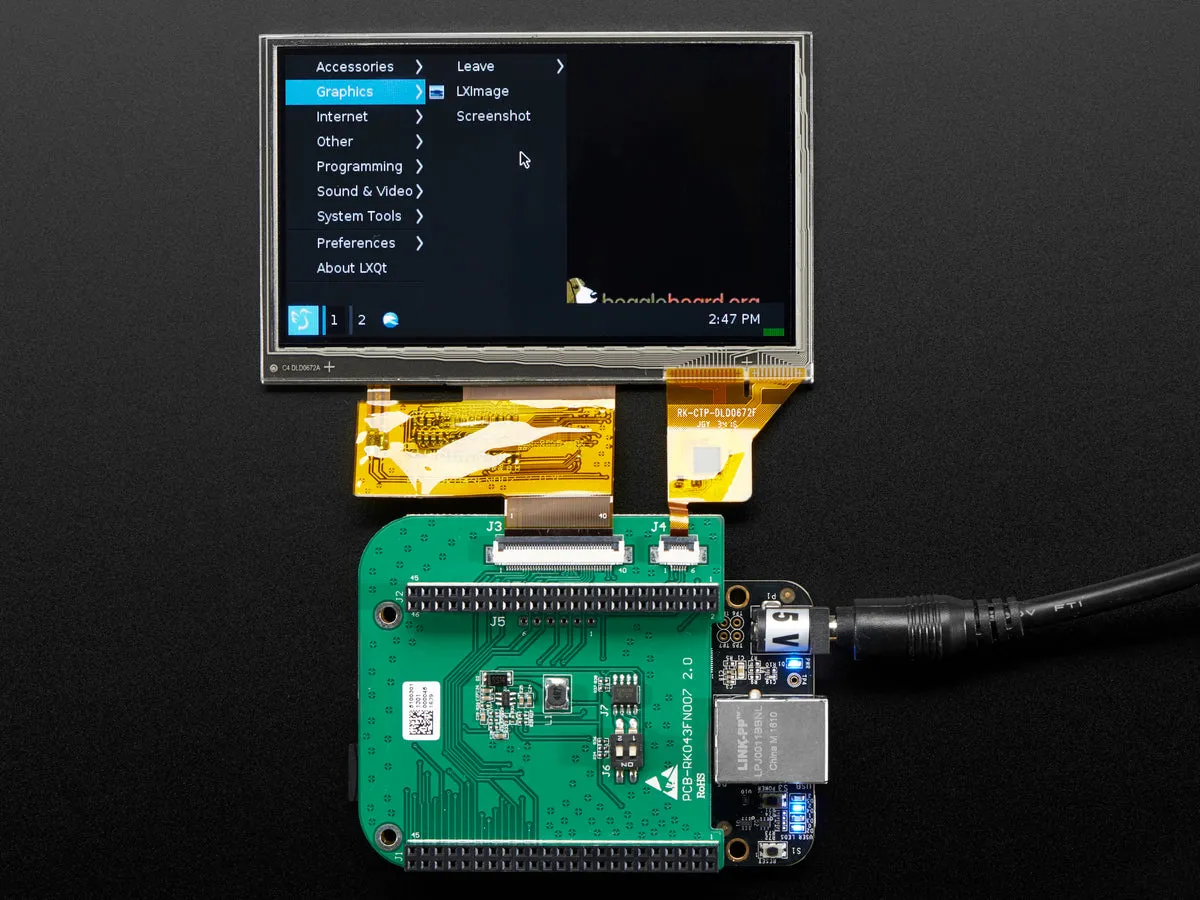

This 4.3” Touchscreen Display Cape connects directly to your BeagleBone (White, Black, or Wireless) to provide a full color touchscreen display solution. The display features a vivid 4.3” LED backlit 480 x 272 TFT LCD with capacitive overlay for smartphone-like input. The Cape utilizes a board ID EEPROM for plug-and-play functionality with the default Debian operating system – no drivers required! Perfect for interactive projects, embedded systems, and standalone installations.
Features
- 4.3” TFT LCD transmissive display
- 480(RGB) x 272 resolution
- With LED backlight
- With capacitive touch
- Cape interface board with connector expandability
- Board ID EEPROM with kit identity storage
Note: board not included!
Technical Details
Screen dimensions: 105.5mm x 67.25mm x 4.75mm / 4.15" x 2.65" x 0.16"
Screen weight: 66.3g / 2.34oz
PCB dimensions: 69mm x 67.5mm x 17mm / 2.7" x 2.66" x 0.67"
PCB weight: 27g / 0.96oz
