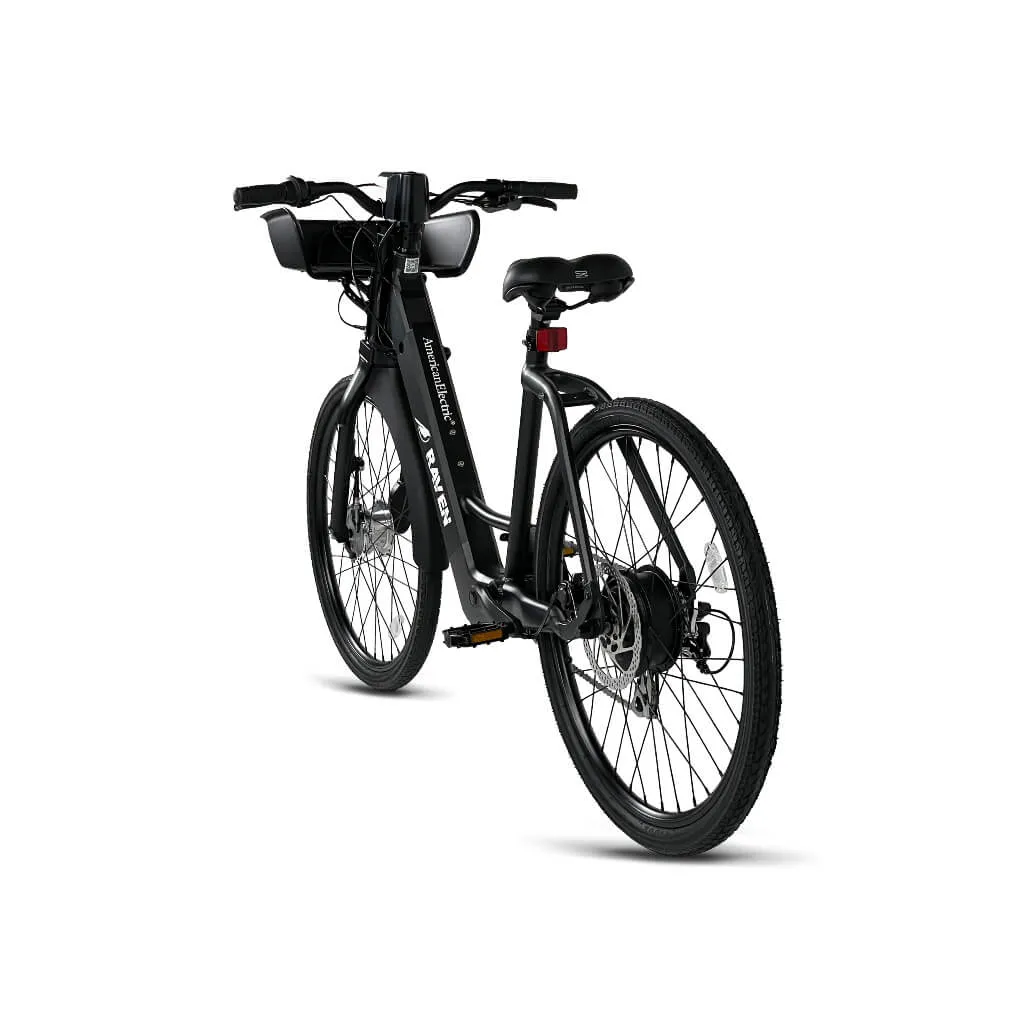

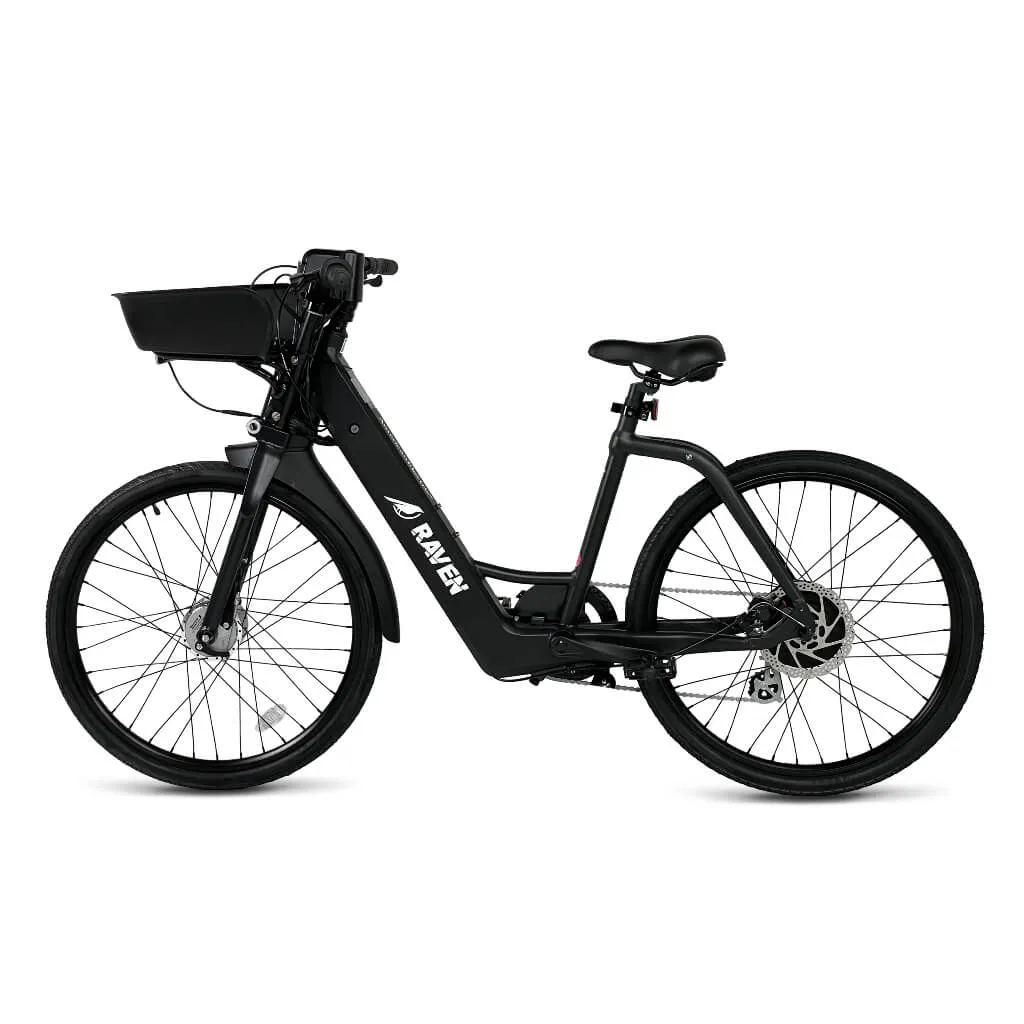

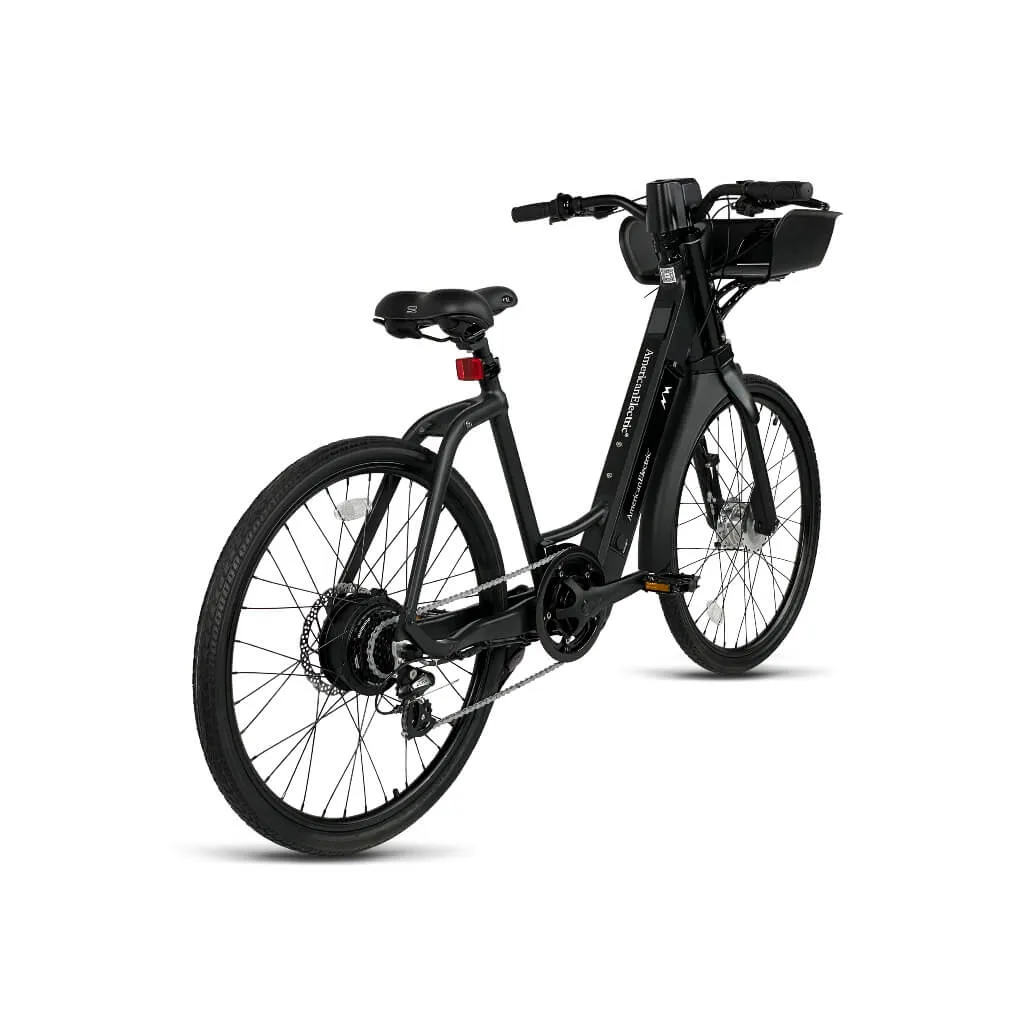

Built with wonderful and high-quality materials, the Raven is the perfect bike for urban riders, cruising along the beach, or city commuters looking for the next most sustainable and reliable mode of traveling to work.
Spotlight on New Improvements/Upgrades:
- Full frame-integrated onboard color display and odometer
- Torque cadence sensor
- Shimano Altus derailleur
- Front dynamo powers LED front light
- Front Lux Basket
It is built with a sleek design and frame integrated battery to make sure the Raven takes your ride experience to the next level. Raven has a step-through frame making it comfortable and easy to use. Pedal-assist mode helps you get more mileage from every charge and you can take the battery out for convenient and safe charging.
The integrated battery and balanced frame offer excellent weight distribution, and our rear hub motor gives you a boost from behind, instead of pulling you forward. The backlit LCD screen displays speed, trip distance, odometer, and battery level.
The all-new Raven e-Bike is available with 350-watt motors. This is the perfect amount of power to coast up hills and steep inclines with less effort and extend your range. Torque-sensing pedal-assist ensures a smooth and even ride as you push forward with each foot.
Snap the removable and lockable battery in and out for easy charging and security. Plug it into any standard outlet for a boost on the fly. The battery fully charges in just 3.5 hours. The battery is well integrated into the frame, so they’re less prominent to vandals. The battery is also locked, the key is required to remove it.
The Raven bicycle is also the perfect bike for rentals, tours, and ride-share entrepreneurs. These types of businesses are reviving in our cities as an inexpensive way to commute for locals, and for tourists to get around. It is a low entry investment to build an electric bike business from the ground up, very easy to operate and requires very low maintenance.
Raven e-bikes are public transit-friendly, making your trip from home or work to the station smooth and hassle-free.
*Comes with a kickstand and basket at no additional cost!*
AmericanElectric Raven Electric Bike Features
- Lightweight Aluminum Frame: With a sleek design and aluminum frame, the Raven is extremely lightweight and easy to ride through and take your ride experience to the next level.
- Step-through Frame: Raven has a step-through frame making it comfortable and easy to use.
- Pedal Assist: Pedal-assist mode helps you get more mileage from every charge. You can take the battery out for convenient and safe charging. The integrated battery and balanced frame offer excellent weight distribution. The backlit LCD screen displays speed, trip distance, odometer, and battery level.
- Powerful Motor: The Raven e-Bike is available with a 350-watt hub motor. This is the perfect amount of power to coast up hills and steep inclines with less effort and extend your range. Torque-sensing pedal-assist ensures a smooth and even ride as you push forward with each foot. The rear hub motor gives you a boost from behind, instead of pulling you forward.
- Easy to Charge: Snap the removable and lockable battery in and out for easy charging and security. Plug it into any standard outlet for a boost on the fly.
- Buyer Protection: We have an expert support staff. Should you feel dissatisfied, check out our
AmericanElectric RAVEN Step-Through Electric Bike Specifications |
| Color | Black |
| Material | High-Quality aluminum 6061 |
| Frame Size | 18" |
| Frame Style | High-quality step-through |
| Fork Style | Triple tube |
| Tires | 26" x 1.75" |
| Tubes | 26" x 1.75" |
| Rims | 26" x 18mm |
| Spokes | 13G Black steel |

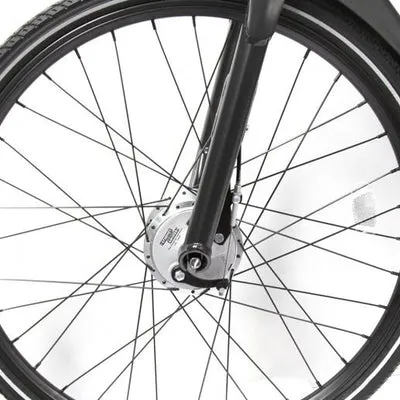

| Front Hub | Silver Dynamo hub |
| Handlebar | Aluminum |
| Stem | Custom triple clamp |
| Headset | Sealed cartridge bearing |
| Seatpost | Aluminum adjustable 8" |
| Seat Clamp | Aluminum, quick release |

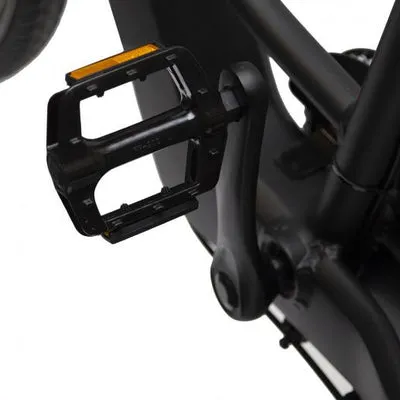

| Pedals | Black |
| Side Kickstand | Atran Velo |
| Brakes | Shimano rear calipers |

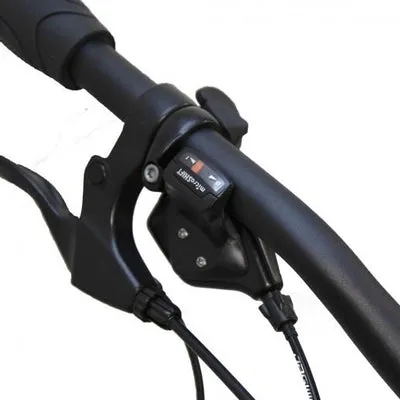

| Shifter | Microshift 8-speed thumb shift |
| Motor | 350W hub motor |
| Controller | 18 Motor controller |
| Pedal Assist | The intelligent pedal assists with a magnet cadence sensor |
| Derailleur | Shimano Altus 8 Speed |
| Display | Frame integrated LCD color display with a charge indicator, speedometer, and auto-reset odometer |
| Charger | 36V, 2Ah Smart trickle charger. Operates on 100V - 120V AC power outlets. |
| Battery | 36V, 10Ah Lithium-Ion |
| Sensor | The torque sensor in crank assembly |
| Weight | 48 lbs / 22 Kg |
| Load Capacity | 300 lbs / 136 kgs |
| Top Speed | 15 miles/hr |
| Distance/Range | 25 miles range |
WARRANTY: |
|
ZoomElectricBikes.com partners with the best E-Bike brands that come with comprehensive warranty plans to ensure our customers are covered.
It comes with a 1-Year Warranty
Please click on the link for the American Electric warranty details.
