Product Details

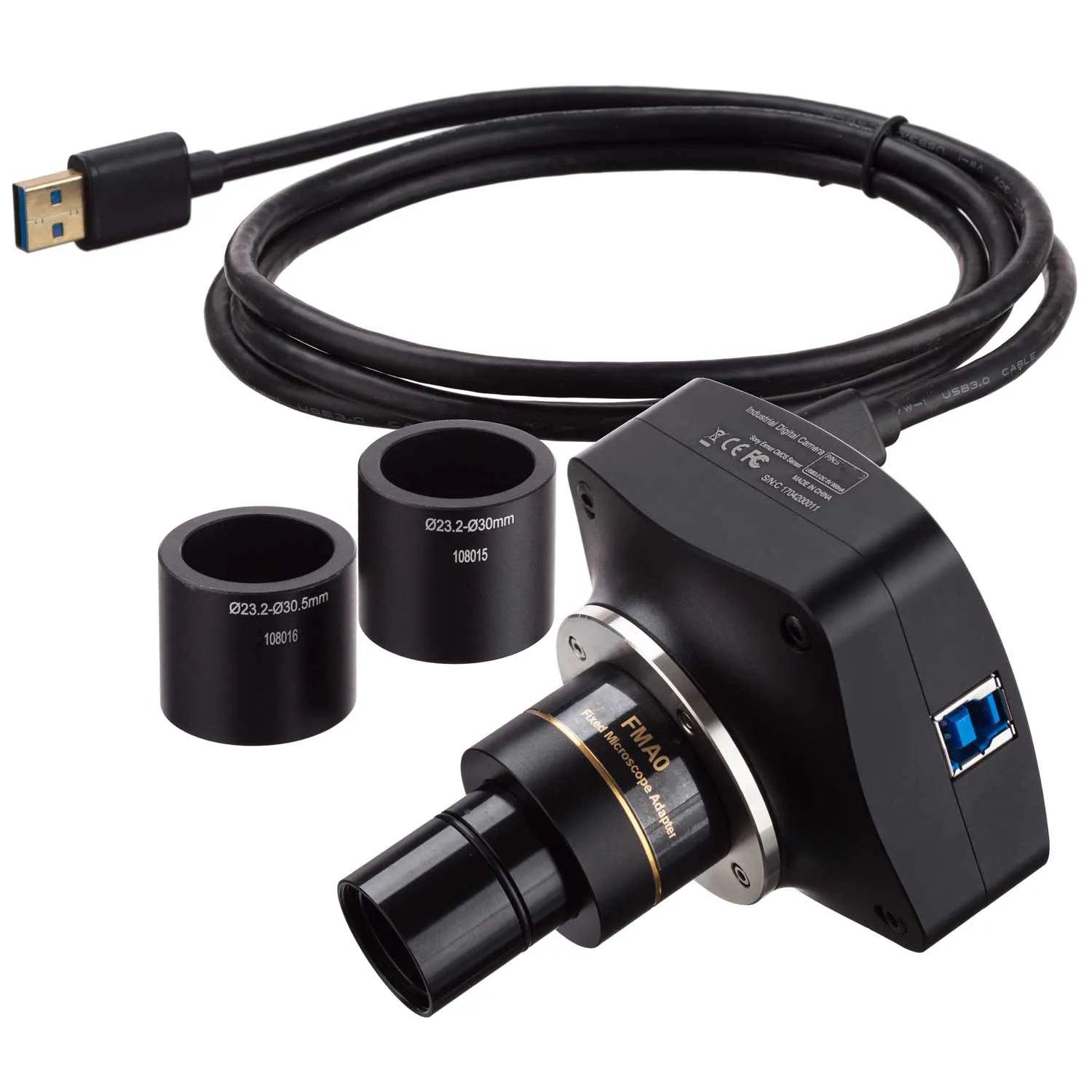

This monochrome version of our 3.1-megapixel global-shutter camera provides better effective sensitivity by removing the color filter-array. The MU313M-GS uses Sony's cutting-edge 3.1-megapixel global-shutter CMOS sensor for high resolution with high quantum-efficiency. As well, larger well-capacity extends the dynamic-range for better capture of strong and weak emissions. The global shutter improves imaging of moving subjects through simultaneous pixel-capture, avoiding the focal-plane distortion seen in rolling-shutter sensors.

With software available for Windows, Mac, and Linux, this camera package is a multi-platform imaging solution. The included Windows software offers image-development and measurement tools, as well as advanced compositing features such as image-stitching and extended-depth-of-focus. With the ability to calibrate scales at multiple magnifications, the software can be used for multi-level inspection. Independent preview and capture resolutions allow you to view high-speed video while simultaneously capturing high-definition images. For Mac and Linux, there is a lite version of the software which can capture video and still images, and includes limited processing features.

Sensor

Sensor Sensor Type Transfer Method Binning Sensitivity
?
Sony IMX265 Monochrome CMOS Global Shutter 1x1 1146mv @ 1/30s
Optical Format Sensor Size Pixels Pixel Size Aspect Ratio
1/1.8" 7.07mm x 5.30mm
8.84mm diagonal
3.1M 3.45µm x 3.45µm 4:3

Camera

Spectral Range
(IR Cut Filter)
Frame Rate(s)
(Maximum)
Exposure Time Connectivity
380nm - 650nm 53fps @ 2048x1536
85fps @ 1024x768
0.1ms - 15s USB 3.0
Lens-mount Compensating Lens Power Compatibility
C-mount 0.5X 5V over USB Windows (32/64 bit) 8.1/10/11, Mac OSX, Linux

Software

OS Requirements Windows (32/64 bit) 8.1/10/11, Mac OS 10.8 , Linux kernel 3.13
Hardware Requirements Intel Core2 2.8GHz or comparable processor, 2GB RAM, USB3.0 port for maximum speed
Features
Windows Version
Live video preview
Captures still images and video
Time-lapse capture
Exposure and white-balance controls
Dark-field correction
Digital binning
Image processing
Measurement tools, including lines, arcs, polygons
Segmentation and counting tools
Image-stitching, extended depth-of-field, HDR
Fluorescence color-mapping
Mac/Linux Versions
Live video preview
Captures still images and video
Exposure and white-balance controls
Contents:
  • One USB3.0 Digital Camera
  • One reduction lens
  • Two Sizing adapters
  • One 6' (1.8m) USB cable
  • One CD with software and instructions
  • AmScope MU Series 3.1MP Monochrome Global-Shutter CMOS USB 3.0 Microscope Camera
    • DefaultTitle

    $ 73.93

    $ 56.87
