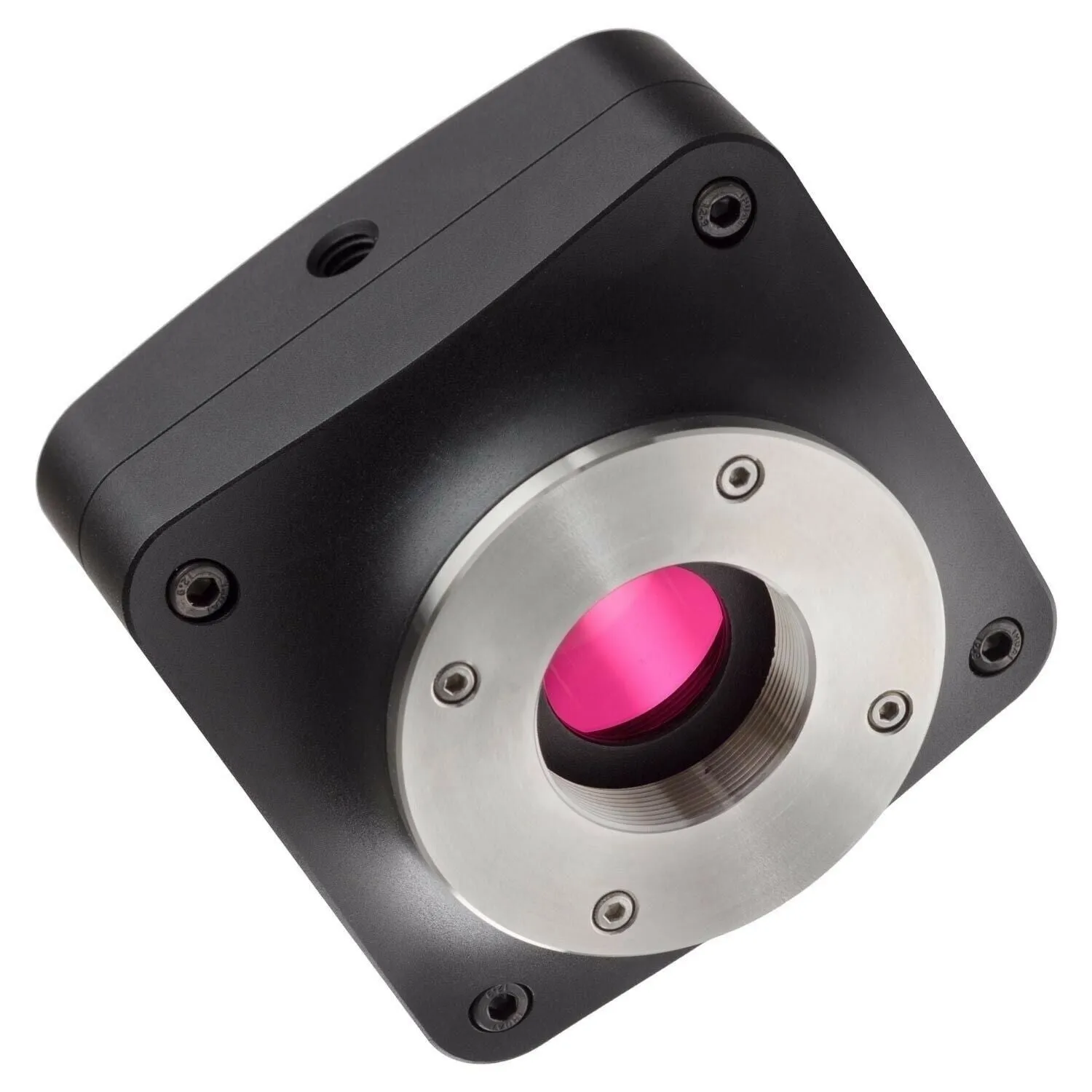

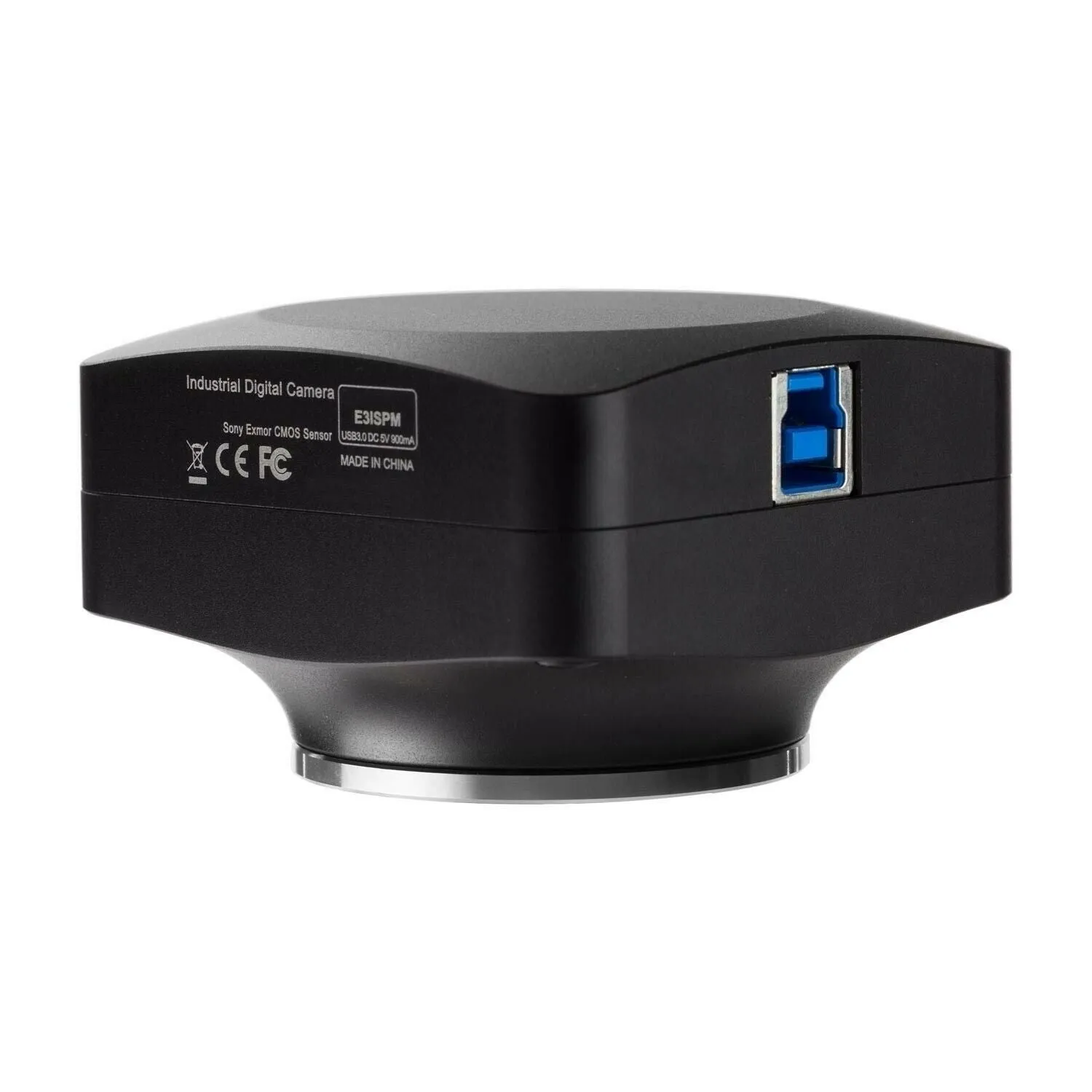

This pinnacle in imaging-technology provides high sensitivity and speed with global-shutter scanning. The MU903-GS uses Sony's cutting-edge 9-megapixel global-shutter CMOS sensor for high resolution with high quantum-efficiency. Using a 1" optical format, larger pixels can be used to increase well-capacity, improving sensitivity and dynamic-range. This translates to shorter exposure-times, lower noise, and the ability to better capture faint emissions. The global shutter improves imaging of moving subjects through simultaneous pixel-capture, avoiding the focal-plane distortion seen in rolling-shutter sensors. With a maximum framerate of 60fps, a new level of responsiveness will be seen during live-viewing, with .

With a large 1" sensor, this camera is best-suited for microscopes with a direct C-mount interface. Smaller photo-ports, such as 23mm ports, will typically cause vignetting, unless used with a magnifying relay lens such as our RU100.

With software available for Windows, Mac, and Linux, this camera package is a multi-platform imaging solution. The included Windows software offers image-development and measurement tools, as well as advanced compositing features such as image-stitching and extended-depth-of-focus. With the ability to calibrate scales at multiple magnifications, the software can be used for multi-level inspection. Independent preview and capture resolutions allow you to view high-speed video while simultaneously capturing high-definition images. For Mac and Linux, there is a lite version of the software which can capture video and still images, and includes limited processing features.
