USB DRIVER: To use the USB-B asynchronous input, you need to download this driver on your computer using Windows software.
This is not requisite on iOS or Linux systems.
«»
Product Details
＋
Atoll DAC 200 Signature Digital Analogue Converter Specifications :
Technical facts:
| Frequency response | 20 Hz – 20 kHz (± 0,1 dB) |
| THD at 1 Khz (0 dBF) | <0,001% |
| Signa/noise ratio | 129dB |
| Dynamic | 133dB |
| Maximum Output level line Maximum Output level XLR |
2,5 Vrms 2,5 Vrms |
Size: 440x280x60 mm
Weight: about 4kg
Atoll DAC 200 Signature Digital Analogue Converter Details :
Audio Specs:
– SABRE converter ES9028PRO (32 bits/768kHz)
(133dB dynamic range; THD n -120dB)
– Ultra low jitter clock oscillator
– Symmetrical voltage outputs
– SABRE ES9311EQ Ultra-Low Noise supply (<1μVrms output noise)
– Symmetrical power transformers for output stages (linear transformers)
– Output stages with discrete components and no-feedback
– High technology MKP capacitors
Readable files:
The SPDIF inputs may playback up to PCM 192kHz.
USB-B input plays up to PCM 768kHz & DSD64, 128, 256 and 512.
(These performances may vary depending on the software or OS of the USB source).
Interface:
– Serial remote control
– Volume control (By-pass On or Off)
– Management of the DAC filters.
– Low consumption OLED display which can display the selected source and also the frequency sample rate of this one.

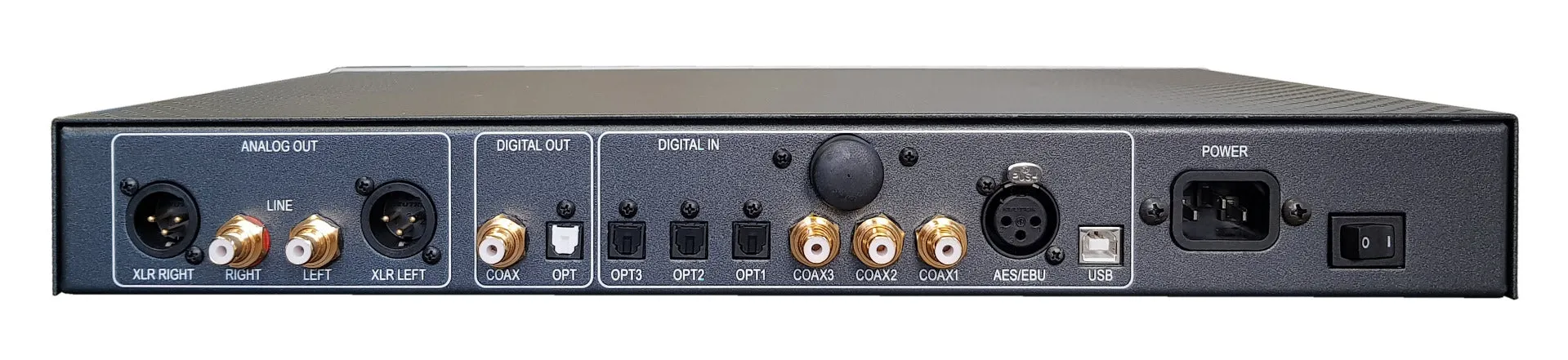

Connecting:
9 digital inputs:
– 3 Coaxial
– 3 Optical
– Bluetooth
– AES/EBU
– USB-B
2 digital outputs:
– Coaxial
– Optical
3 analog outputs:
– RCA unbalanced stereo
– XLR balanced stereo
– Headphones jack 3,5mm
