Product Details
＋
Cubic's PM1.0, PM2.5, and PM10 combined Particulate Matter Sensors deliver fast, accurate and stable performance at an incredibly low price. They are designed to be used stand-alone or as the foundation of an OEM indoor air quality PM detector.
Features
- Advanced laser scattering technology
- Real-time output PM1.0, PM2.5, PM10 in μg/m³
- Small, compact structure
- All-metal shielding for strong anti-interference
- High accuracy, high sensitivity and quick response
- Industry-standard UART, I²C outputs
- Four types of measuring modes: single/continuous/timing/dynamic
- RoHS and Reach compliant
Models

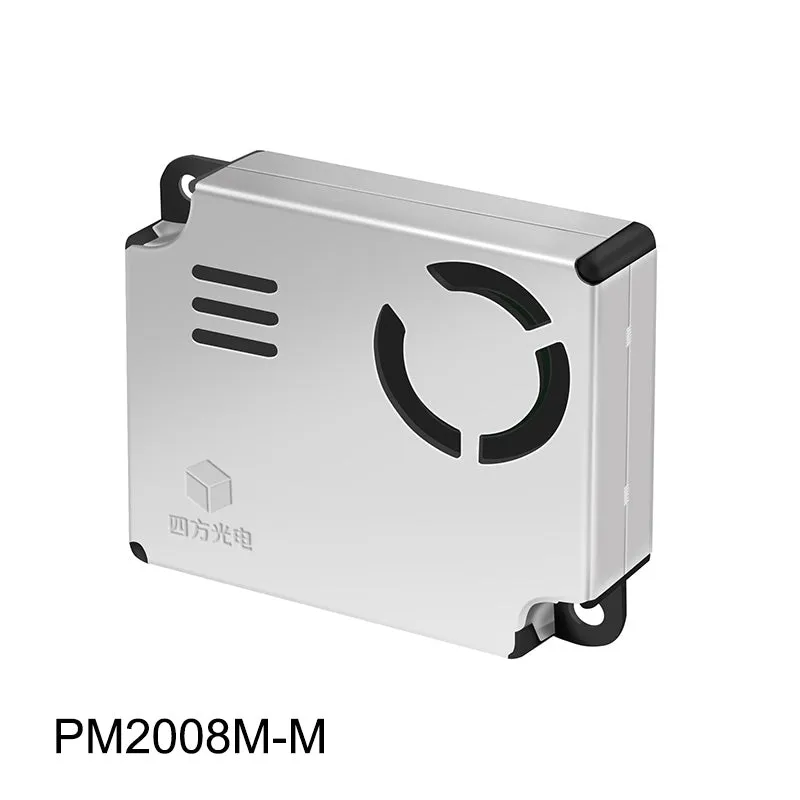

- PM2008M-M Sensor Module - UART, I2C, PWM, with inlet and outlet ports on the same side. Better accuracy at very low PM levels.

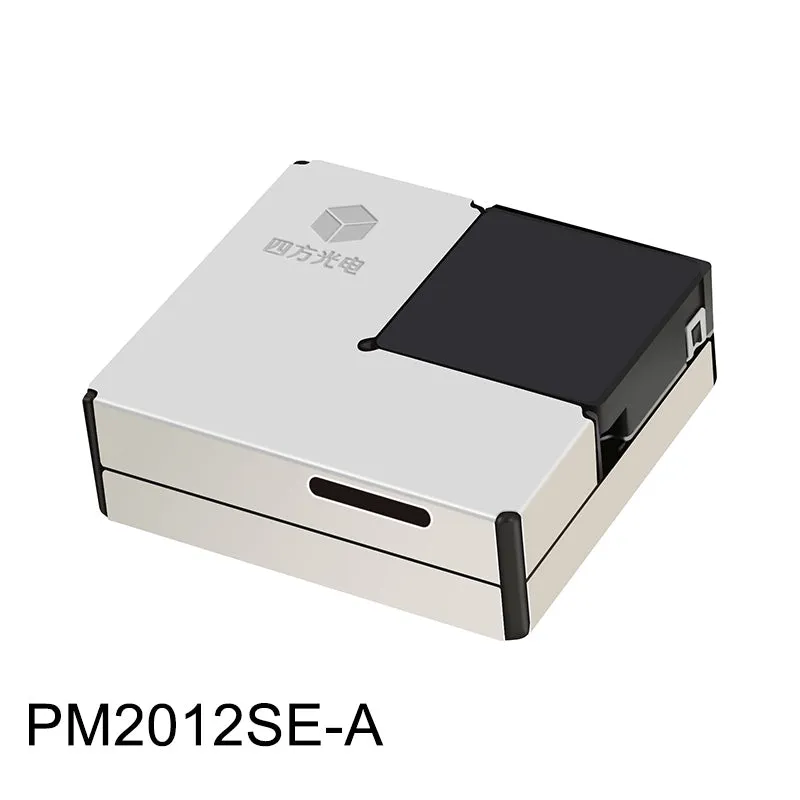

- PM2012SE-A Sensor Module - UART, I2C. Opposite side ports.
PM2008M-M Specifications
- Operating principle: Laser scattering
- Measured particle range: 0.3μm~10μm
- Measurement range: 0~5,000μg/m³
- Resolution: 1μg/m³
- Accuracy: (GRIMM, 25±2℃, 50 ±10%RH)
- PM2.5/PM1.0:: 0~35μg/m³, ±5μg/m³, 35~500μg/m³, ±15% reading
- PM10: 0~100μg/m³, ±25μg/m³, 101~500μg/m³, ±25% reading
- Response time: 1 sec
- Time to first reading: ≤ 8 seconds
- Power supply: DC 5V±0.1V, ripple wave＜50mV
- Working current: ≤100mA
- Standby current: ≤200μA
- Dimensions: W48*H40*D12 mm
- Digital output 1: UART: 3.3VDC, I2C 3.3-5VDC
- Digital output 2: PWM (customized)
- MTTF: 110,000 hours (continuous turn on)
- Working condition: -10°C ~ 60°C, 0-95%RH (non-condensing)
- Storage condition: -40°C ~ 80°C, 0-95%RH (non-condensing)
- Weight: 6g
PM2012SE-A Specifications
- Operating principle: Laser scattering
- Measured particle range: 0.3μm~10μm
- Measurement range: 0~5,000μg/m³
- Resolution: 1μg/m³
- Accuracy: (GRIMM, 25±2℃, 50 ±10%RH)
- PM2.5/PM1.0:: 0~100μg/m³, ±10μg/m³, 101~500μg/m³, ±10% reading
- PM10: 0~100μg/m³, ±25μg/m³, 101~500μg/m³, ±25% reading
- Response time: 1 sec
- Time to first reading: ≤ 8 seconds
- Power supply: DC 5V±0.1V, ripple wave＜50mV
- Working current: ≤100mA
- Standby current: ≤200μA
- Dimensions: W38*H35*D12 mm
- Digital output: UART/I2C: 3.3VDC/5VDC(Level)
- MTTF: 110,000 hours (continuous turn on)
- Working condition: -10°C ~ 60°C, 0-95%RH (non-condensing)
- Storage condition: -40°C ~ 80°C, 0-95%RH (non-condensing)
- Weight: 6g
Warranty
- 90 days - See CO2Meter Terms and Conditions.
Cubic Software
Software supplied by the manufacturer lets you test and read single sensors using UART or multiple sensors in series using I2C.
A cable to connect the sensors is not included. We suggest:
CU-PM2008M-M -
CU-PM2012SE-A -
