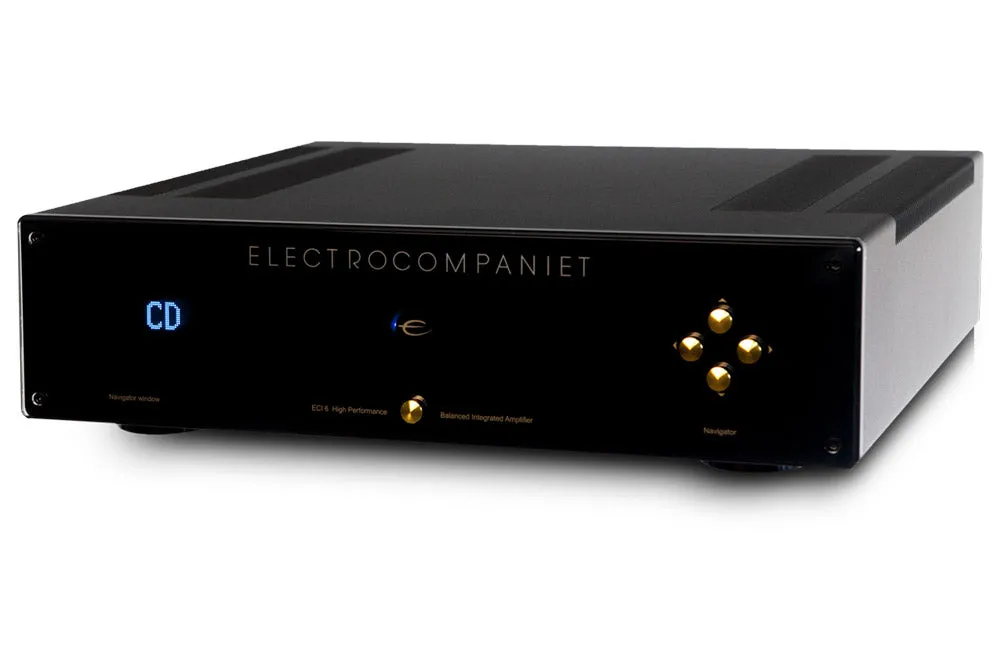

The ECI 6Dx combines a best-in-class feature set with cutting-edge audio technology and true Electrocompaniet sound. This single unit is able to play whichever, wherever, and whatever audio you might have, and makes it sound like music was meant to be.
The built-in streamer is extremely powerful, flexible, and easy to use. It can play directly from music services such as Tidal, Qobuz, and Spotify can be fed music through AirPlay or DLNA, and can even index and play from your own music collection stored in your network. The powerful hardware ensures that all popular formats are supported (including DSD) and that continuous software upgrades can support the latest and greatest streaming services.
The streamer shares the same DNA as the ECM 1 and the EC Living product line. This means that you can use the same apps and interface, and play all of the same music on all units. This way, you don’t have to choose between high-end and multi-room, or flexibility and audio quality. All units are equally flexible and will work equally well together.
The ECI 6DX can be operated by the intuitive iOS & Android application, the universal web interface, or with the straightforward IR remote control. All of our streamer systems use the same app and web interface.
Technical Specifications:
All measurements are made at 120V / 240V //50Hz / 60Hz | ||
Digital section: | ||
D/A converter | 24 bit/192 kHz | |
Sample rate converter | 24bit / 192kHz | |

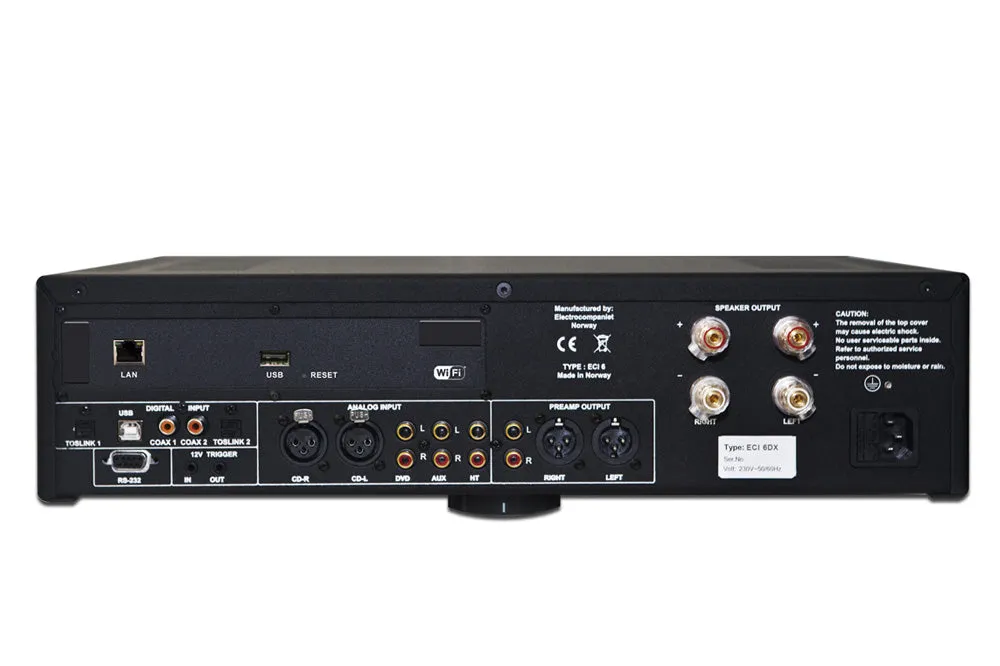

Inputs | SPDIF, 2x Toslink, 1x USB | |
USB: | asynchronous up to 24bit/ 192kHz supported | |
SPDIF: | 24bit/ 192kHz | |
Toslink: | 24bit/ 96kHz | |
Streamer section • Advanced 802.11 AC WiFi with MIMO • 1x Gigabit Ethernet (1000Mbps) • 1x USB for external storage • iOS, Android and web app |
||
Streaming services • AirPlay ® • AirPlay 2 ® * • Spotify ® Connect • Qobuz ® • TIDAL ® • TIDAL ® Connect • Roon Ready • DLNA • Internet Radio • Bluetooth streaming from any Bluetooth enabled device * Future software update. |
||
Supported formats: • All popular formats including: WAV/WAVE, MP3, AAC , Vorbis, ALAC, FLAC, APE, WMA, up to 192kHZ/24bit, DSD, up to DSD 128 (5.6 MHz) |
||
Preamplifier section | ||
Input impedance ( Balanced input ) | 47Kohm | |
Maximum input level | 10 Volt RMS | |
Noise floor ( 1Vrms, 20 - 20 kHz, balanced) | -135 dB | |
THD N (1Vrms, 20 - 20 kHz, balanced) | <0.004% | |
Gain (Balanced) | 0 dB | |
Amplifier section | ||
Output Impedance | < 0,02 Ohm | |
Frequency response | 1 – 150 kHz | |
Channel separation | > 120 dB | |
THD ( 20 - 20 kHz) | < 0.004% | |
Maximum peak current | >100A | |
Damping factor 8 ohm load | >350 | |
I Input sensitivity 120W output | 1.3Vrms | |
Input sensitivity HT 120W output | 1Vrms | |
Gain HT Input | x36 (31 dB) | |
Rated output power | ||
8 ohms | 2 x 125 W | |
4 ohms | 2 x 200 W | |
2 ohms | 2 x 370 W | |
Power consumption | 110 W | |
Standby | 1W | |
(no load or signal) | ||
Dimensions | ||
Width | 465 mm / 18.3 inches | |
Depth | 405 mm / 16 inches | |
Height | 128 mm / 5 inches | |
Weight | 20Kg / 44 lbs. |
