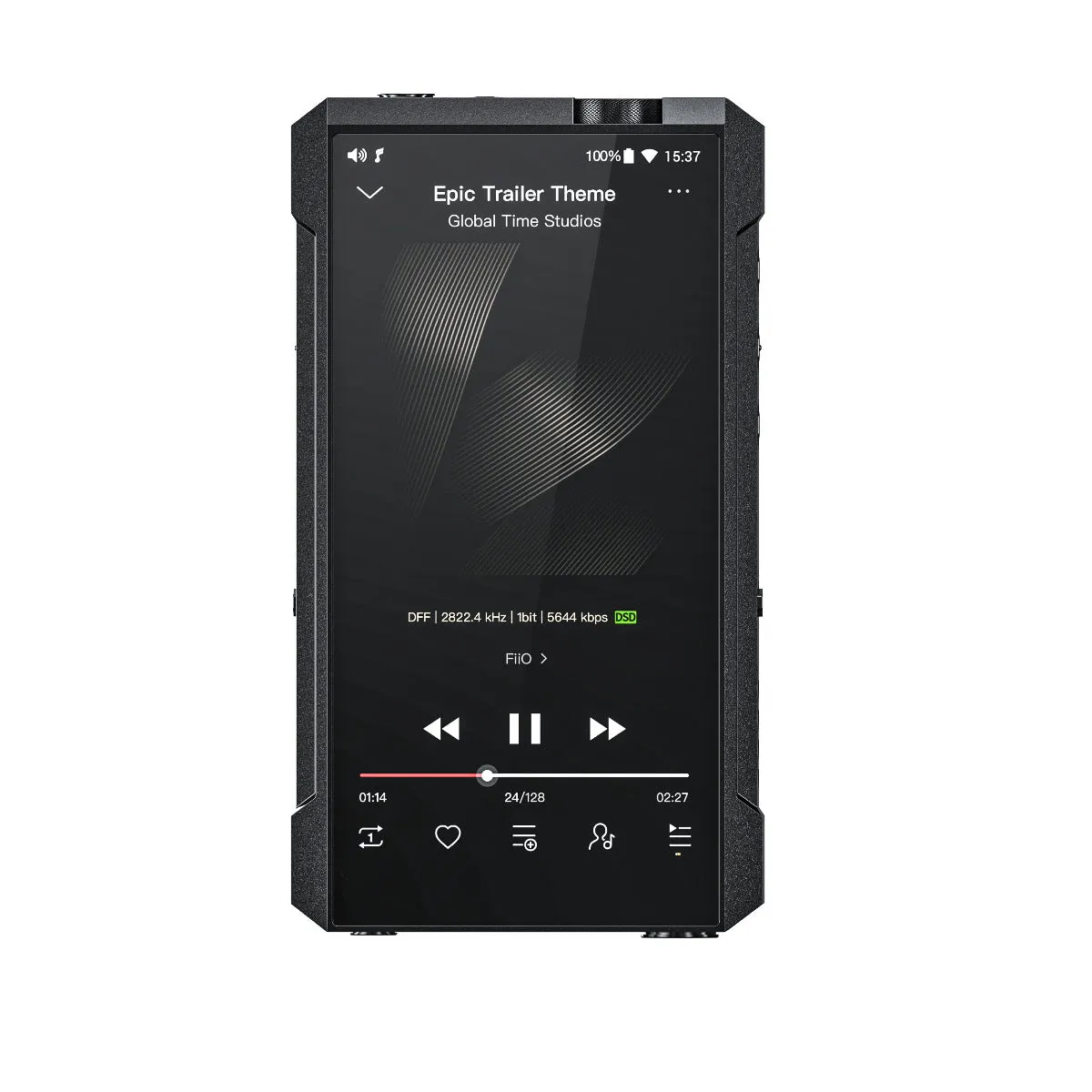

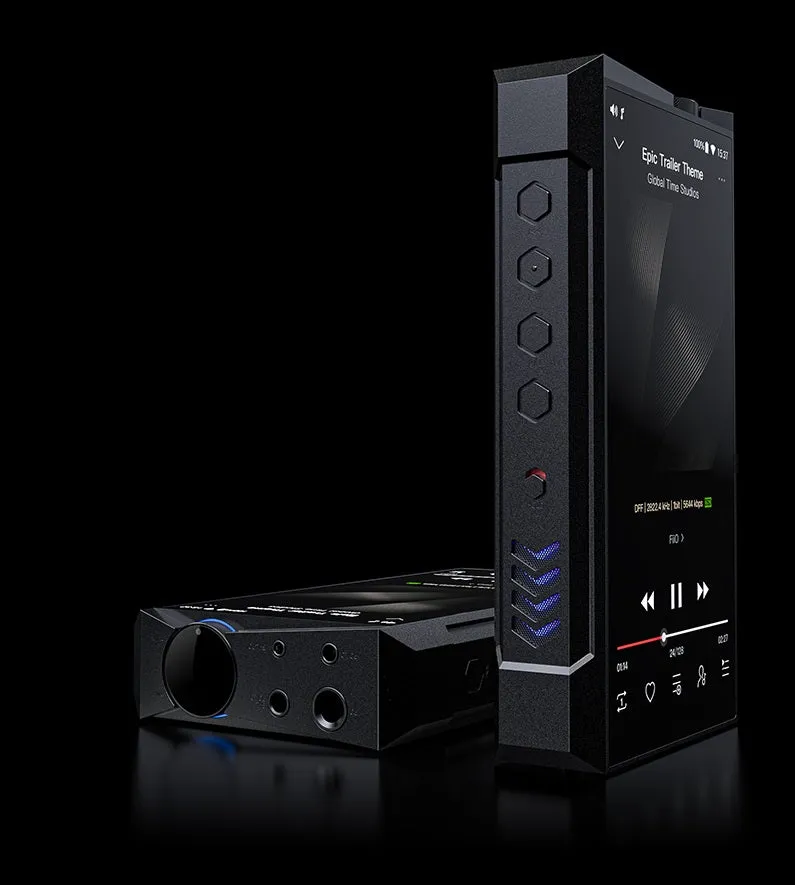

FiiO M17 portable Desktop-Class Player

The smart desktop-class Fiio M17 is an entirely new chapter of FiiO digital audio players. Its desktop-grade DAC, amplification, power supply, etc. give it the output power and sound quality to rival and perhaps even surpass highly-regarded desktop systems – but in a portable package. Let the Fiio M17 redefine what is possible with portable audio players.

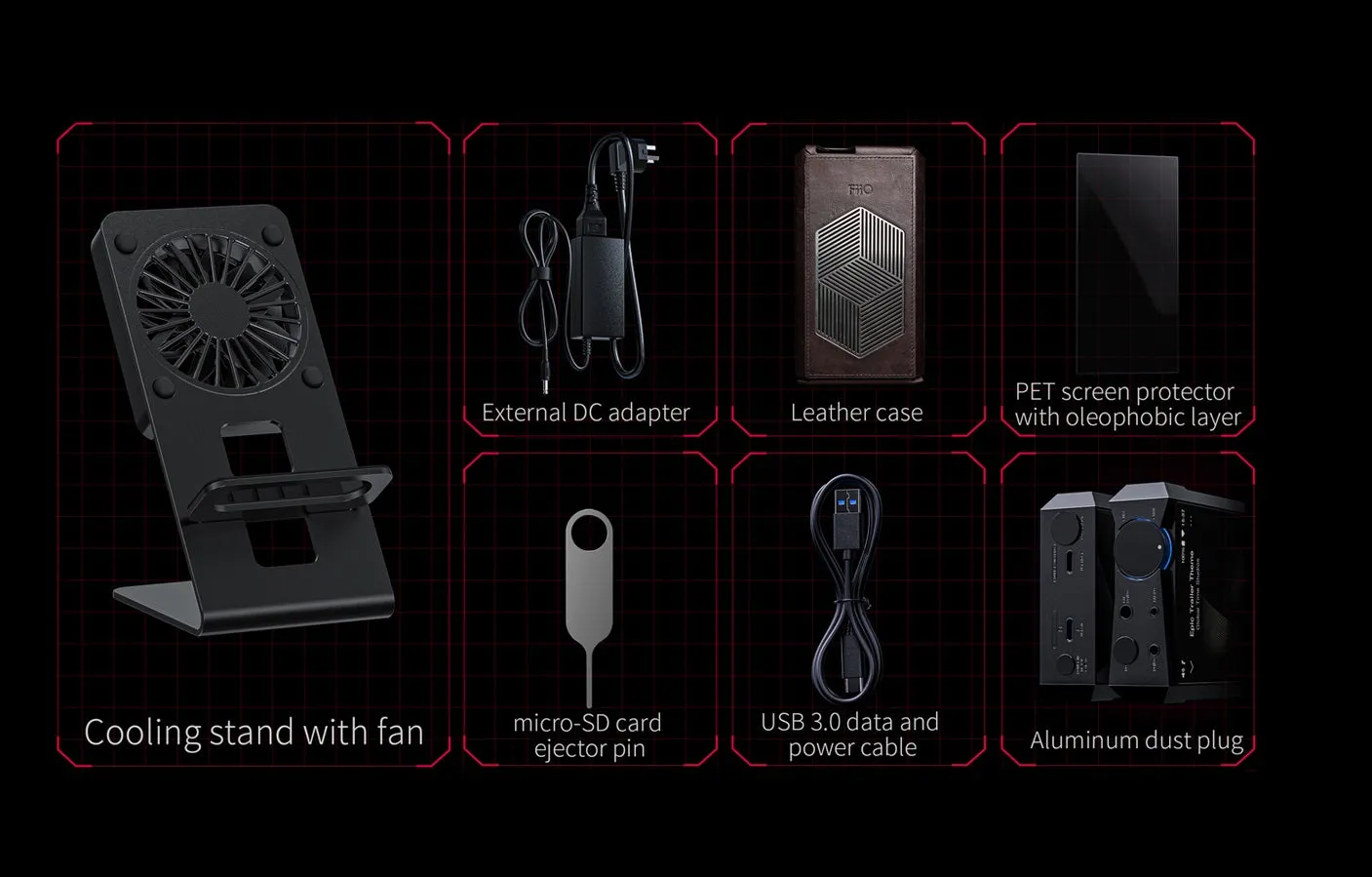

DK3 included

· External DC adapter

· Cooling stand with fan

· PET screen protector with oleophobic layer (pre-applied)

· Leather case

· micro-SD card ejector pin

· USB 3.0 data and power cable

· Aluminum dust plug

Fiio M17 specification

SoC: Qualcomm Snapdragon 660

DAC: ES9038PRO*2

Amplifier: THX AAA-788

Bluetooth: QCC5124

USB receiver: XMOS XUF208

Crystal oscillator: NDK femtosecond crystal oscillator*2

Output power：≥1.5W（16Ω / THD N＜1%)
≥3W（32Ω /THD N＜1%）
≥500mW（300Ω /THD N＜1%)
Noise floor：≤3.5μV（A-weighted）
SNR：≥123dB（A-weighted）
THD N: ≤0.0007%（1kHz/32Ω）

Operation modes: Android /Pure Sound/USB DAC/Bluetooth receiver/AirPlay/Coaxial decoding

Dimensions: approx. 156.4*88.5*28mm

Weight: 610g

Display: 5.99 inch（1080*2160）incell touchscreen display

Charging: Supports QC3.0, QC4.0, PD2.0, and PD3.0 quick charge

Battery capacity: 9200mAh

Battery life: approx. 10 hours (single-ended), 8 hours (balanced)

Charging time: approx. 4.5h (with quick charge)

Standby: 1000h

Volume control: potentiometer knob or button controls

Memory (RAM): 4GB

Total storage/user available (ROM): 64GB/approx. 46GB
