Name: Red Lion Controls CUB4L010
SKU: 491214

Product Details ＋

Product Attribute	Attribute Value
Application	Industrial
Approvals	CE Approved, EN 61010-1, EN 61326-1 Immunity to Industrial Locations, Emission CISPR 11 Class B, IEC, IP65, IP65 (Face Only), NEMA 4X, RoHS Compliant, Type 4X Indoor (Face Only), UL Recognized Component: File E179259
Backlighting	Backlight
Bezel	NEMA 4X⁄IP65 Sealed Front Panel
Connection Type	Screw-Clamp Terminal
Counter Type	Miniature Counter
Cut Out, Panel	2.68 L x 1.30 H in., 68 L x 33 H mm "
Depth	0.157" (4mm)
Dimensions, Cutout, Inches	68 x 33 mm mm
Display Digit Height	12.2 mm mm
Display Type	LCD
Function	Counter
Input Type	Voltage
Maximum Operating Temperature	60 °C
Measuring Range	0 to 999999 hrs.
Minimum Operating Temperature	0 °C °C
Mounting Type	Panel Mount
Number of Digits	6 Digits
Operating Temperature, Maximum	60 °C
Operating Temperature, Minimum	0 °C
Overall Size	74.90 mm W x 39.10 mm H
Primary Type	Electronic
Series
Supply Voltage	9 to 28 VDC
Supply Voltage Logic	3 V
Temperature Range	0 to 60 °C °C
Temperature, Opening, Maximum	60 °C °C
Type	Electronic

Overview

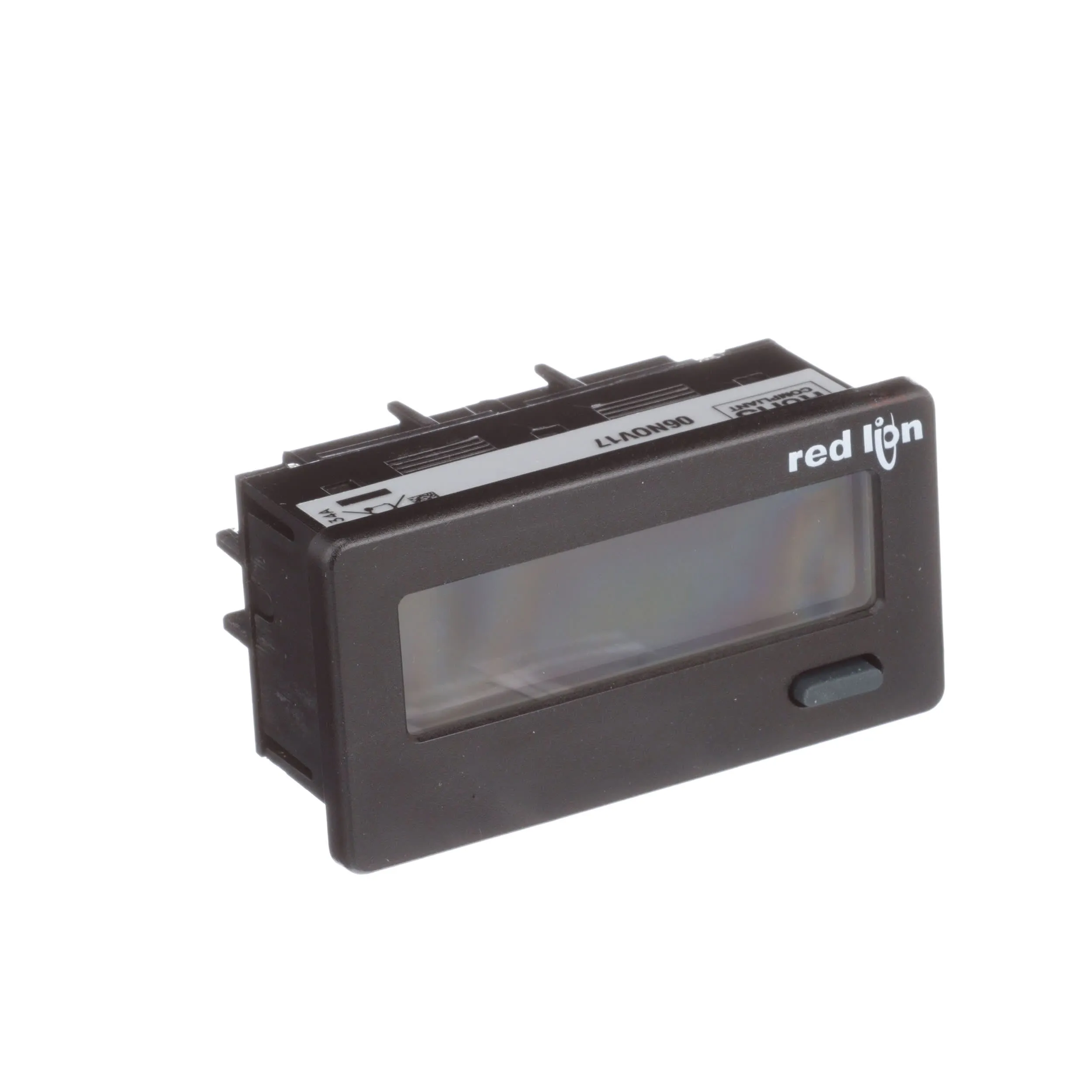

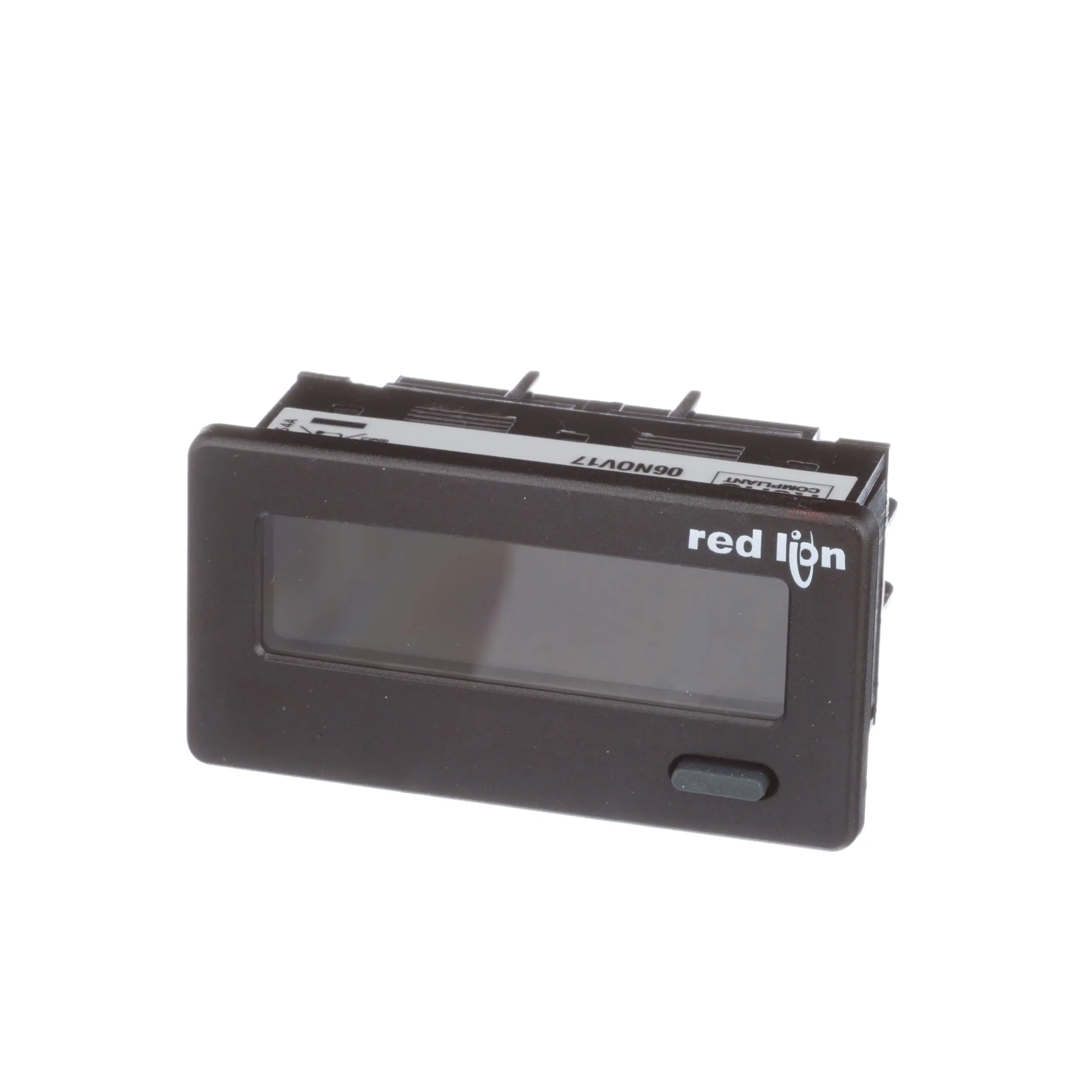

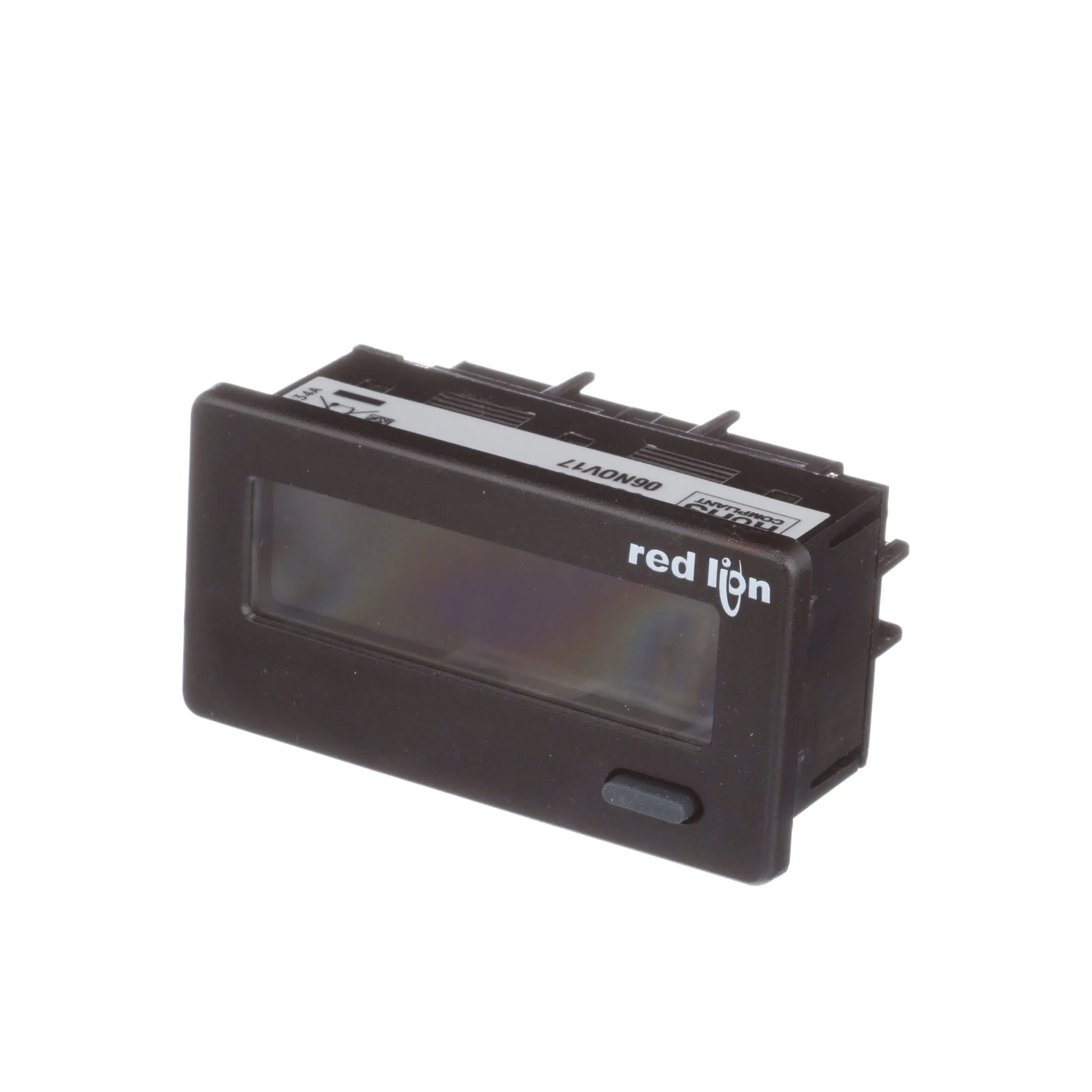

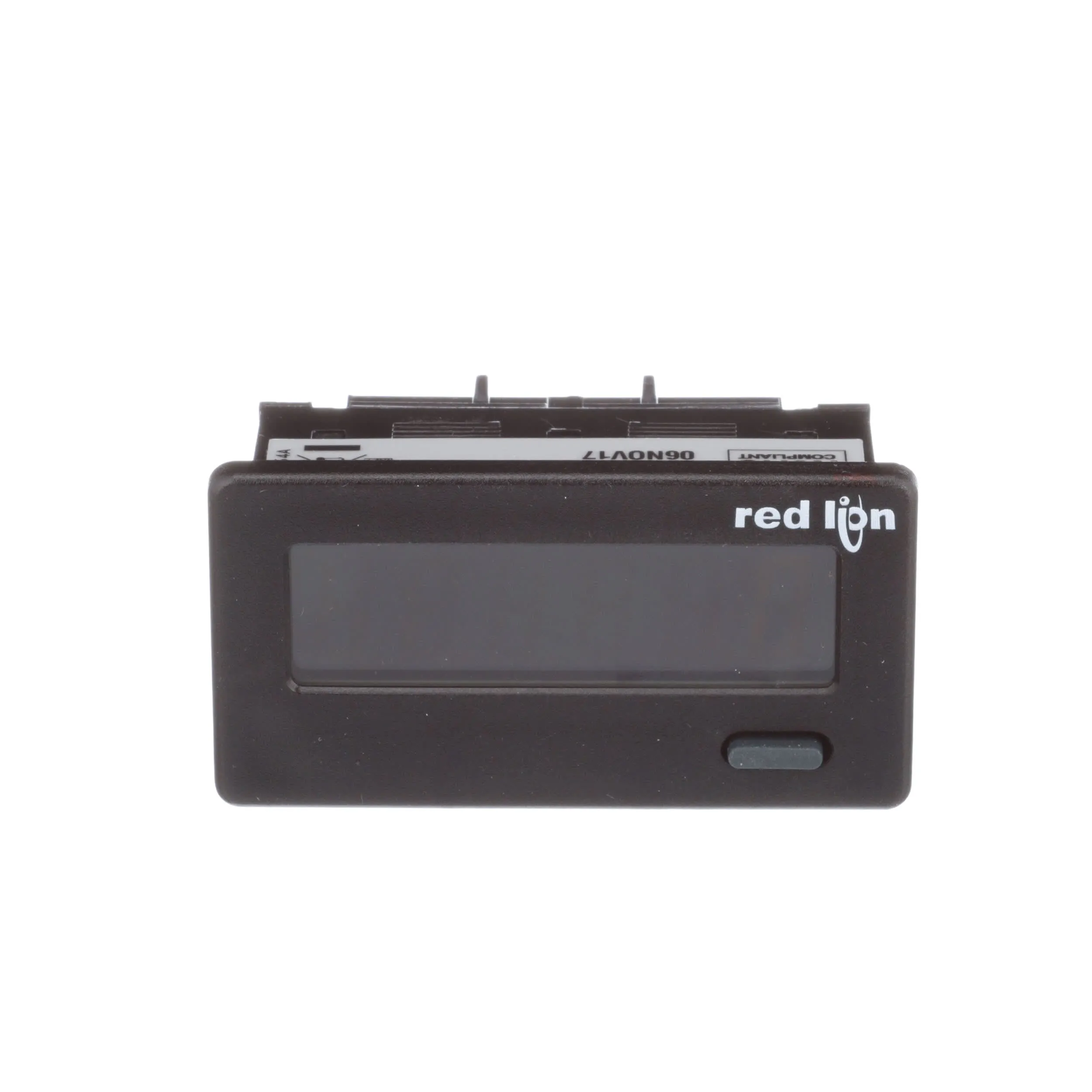

Red Lion CUB4 Series — CUB4L010 Miniature Electronic Counters:

The CUB4 offers a large display in a miniature package with a choice of three displays; reflective, red backlight or green backlight. The backlight versions require power from an external 9–28 VDC supply. The optional power supply (MLPS) is designed to be attached directly to the rear of the CUB4 and is powered from an 85–250 VAC source. The CUB4 series has a lightweight, high impact plastic case with a clear viewing window. The sealed front panel with the silicone rubber reset button meets NEMA 4X/IP65 specifications for wash-down and/or dusty environments, when properly installed.

Features:

39 mm x 75 mm

6 Digit, 0.48" (12.2 mm) LCD

Yellow/Green LED Backlighting

3 V Lithium Battery (9 - 28 VDC Required for Backlit Models)

Front Panel, Remote Reset

5 KHz

NEMA 4X/IP65
